22  相关矩阵

library(tidyverse)
library(corrplot)
library(Hmisc)
library(ggcorrplot)

# 计算默认相关系数矩阵
cor_matrix_raw <- cor(mtcars)

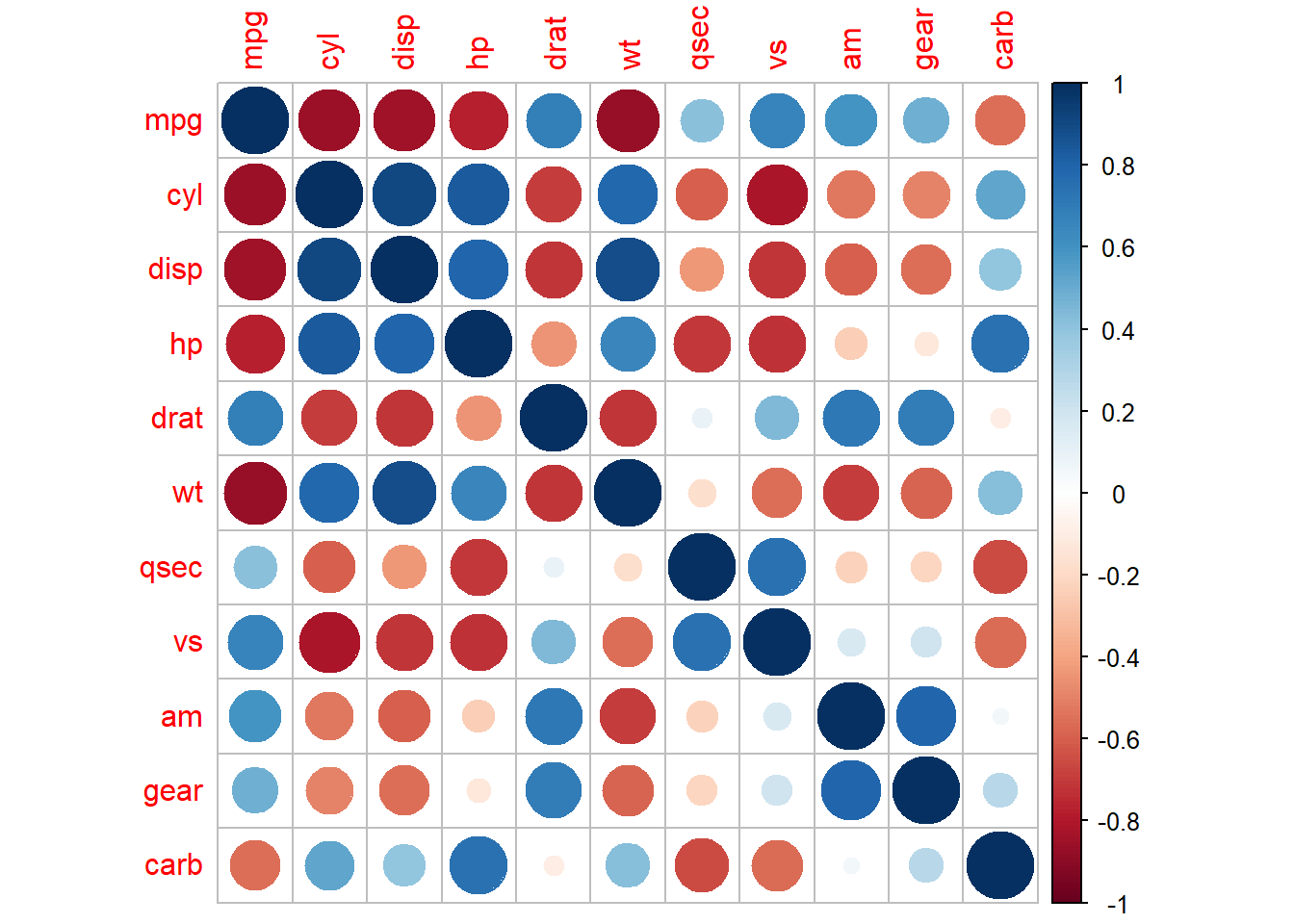

# 默认可视化：圆形大小和颜色深浅双重编码
corrplot(cor_matrix_raw)

# 计算相关系数 r 和 显著性 p 值矩阵
cor_res <- rcorr(as.matrix(mtcars))
r_matrix <- cor_res$r
p_matrix <- cor_res$P

# 动态过滤：将 p 值大于 0.05 的单元格相关系数置为 NA
cor_significant <- r_matrix
cor_significant[p_matrix > 0.05] <- NA

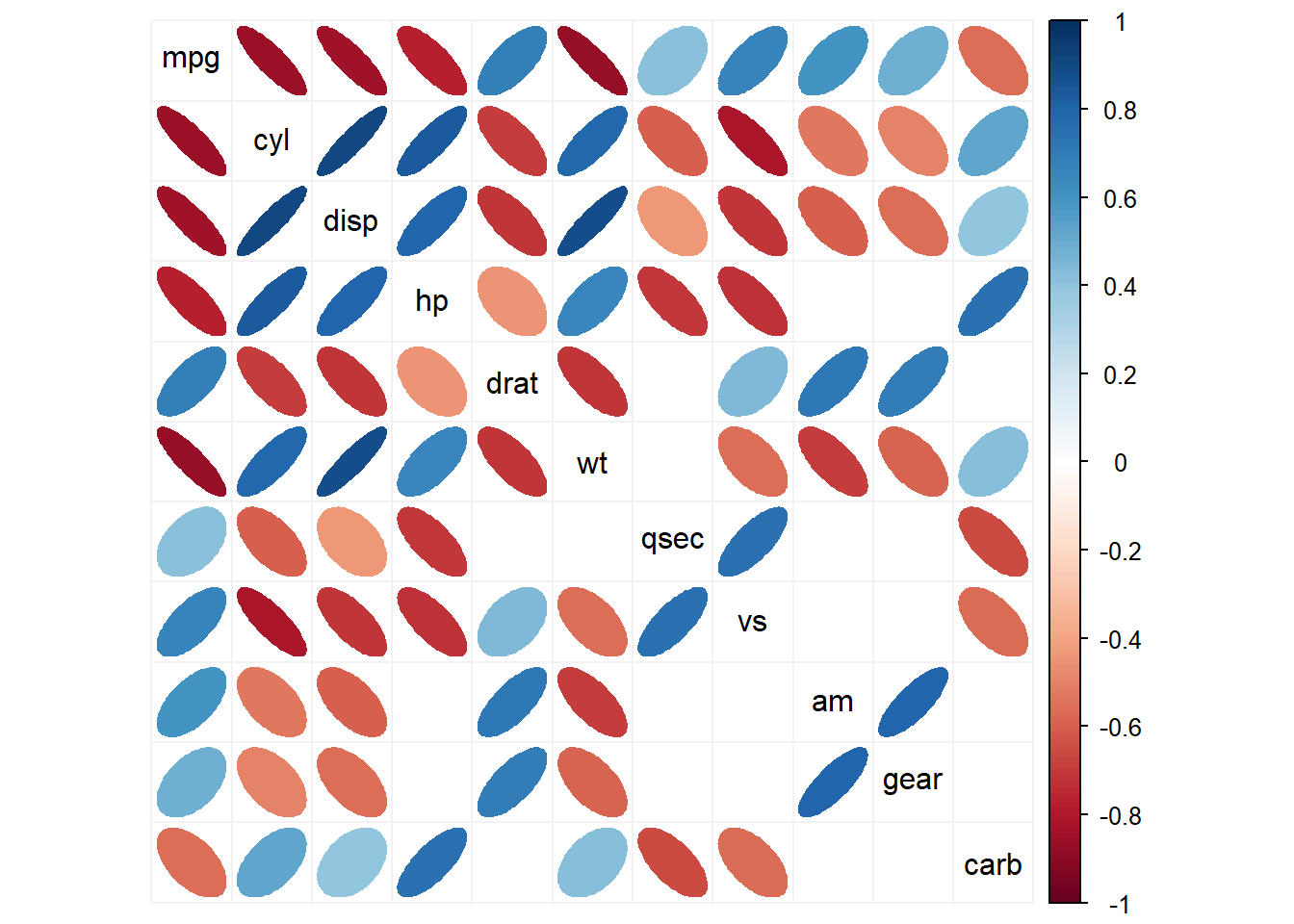

# 绘制高级改进图
corrplot(
  cor_significant,
  method = "ellipse",        # 使用高级椭圆编码
  na.label = " ",            # 将不显著的 NA 单元格留白
  tl.pos = "d",              # 标签(Text Label)位置摆放在对角线(Diagonal)
  tl.col = "black",          # 标签文本颜色设为黑色
  tl.srt = 0,                # 标签旋转角度
  addgrid.col = "gray95",    # 超淡色网格线规整视效
  cl.pos = "r"               # 颜色图例(Color Legend)靠右放置
)

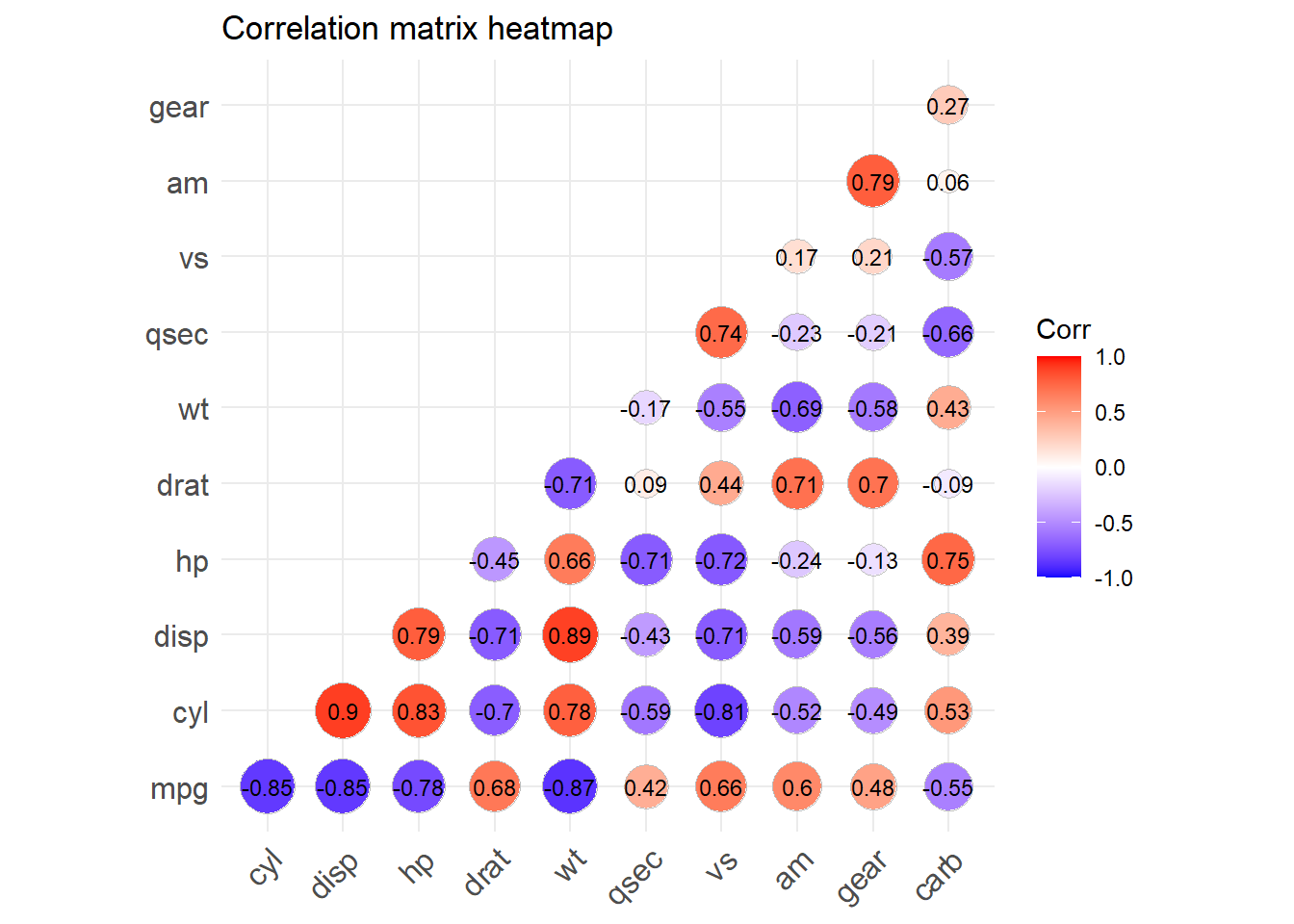

cor_mat <- cor(mtcars, use = "complete.obs")

ggcorrplot(cor_mat,
           method = "circle",
           type = "lower",
           lab = TRUE, lab_size = 3,
           colors = c("blue", "white", "red"),
           title = "Correlation matrix heatmap")

Warning: `aes_string()` was deprecated in ggplot2 3.0.0.
ℹ Please use tidy evaluation idioms with `aes()`.
ℹ See also `vignette("ggplot2-in-packages")` for more information.
ℹ The deprecated feature was likely used in the ggcorrplot package.
  Please report the issue at <https://github.com/kassambara/ggcorrplot/issues>.
